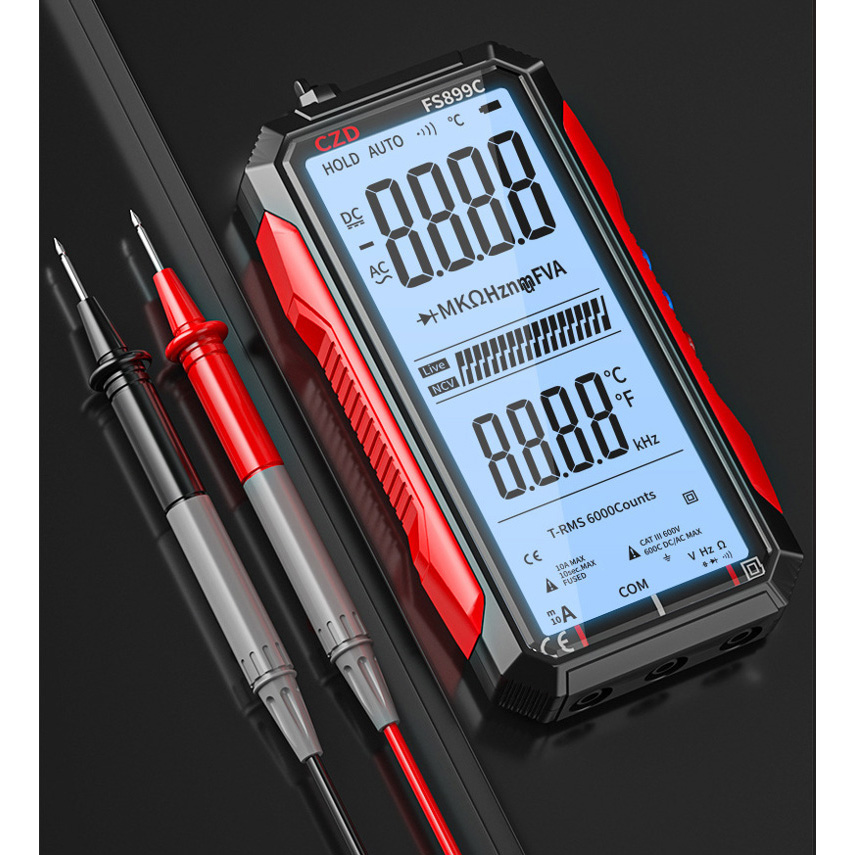

Rechargeable Large-Screen Digital Multimeter | High-Precision Smart Auto-Ranging Digital Multimeter

This product is an intelligent digital multimeter equipped with a large backlit display and rechargeable functionality, delivering high-precision measurement performance. It features plug-and-play operation with auto-ranging, providing simple and intuitive use. Built with a smart chip for fast and accurate measurements, it is suitable for various electrical testing scenarios.


Share:

Product Applications

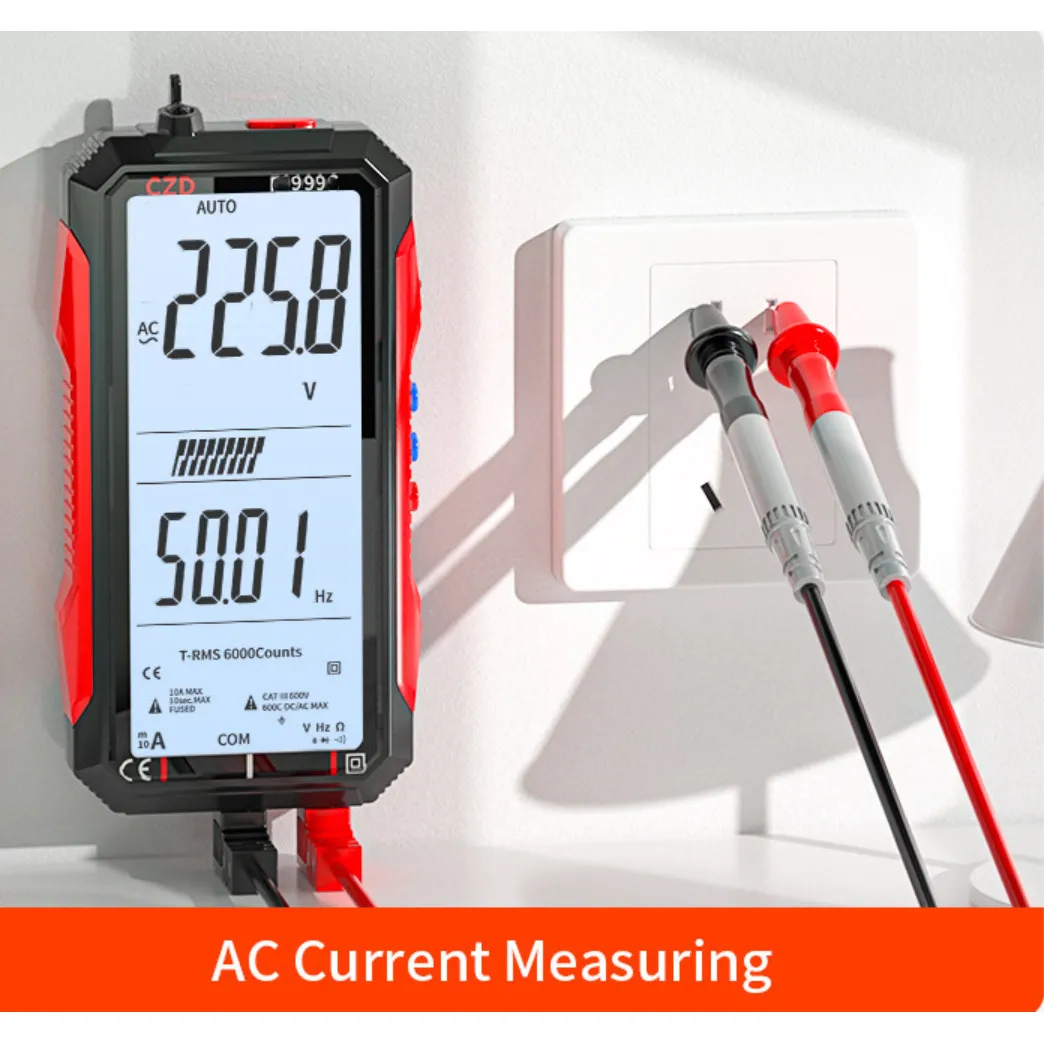

AC/DC voltage measurement

AC/DC current measurement

Resistance, capacitance, and diode testing

Continuity buzzer test

Frequency measurement

Ambient temperature measurement

Non-contact voltage detection (NCV)

Live/neutral wire identification

Flashlight illumination

Data hold and backlight display


Product Usage

Start measuring immediately—no range switching required, one-key operation

Equipped with a backlit large screen displaying range, digits, and analog bar simultaneously

Supports USB charging, portable design, fits in a pocket for easy carry

Built-in LED flashlight for low-light working environments

High-quality original test leads, drop-resistant and anti-static, safe and durable


Product Advantages

High-Precision Smart Measurement: Upgraded smart chip ensures fast and accurate results

Multi-Function Integrated Design: Combines voltage, current, resistance, capacitance, temperature, frequency, and other measurement functions


Safe and Convenient:

NCV non-contact voltage detection effectively prevents electric shock

Live/neutral wire identification enables one-key measurement without test lead contact

Full-range intelligent anti-burn protection, suitable for both beginners and professionals


User-Friendly Design:

Large backlit screen ensures clear readings in dark environments

Data hold function facilitates recording measurement results

Compact and portable for use anytime, anywhere

High-Quality Accessories: Original test leads are drop-resistant and anti-static, enhancing measurement accuracy and safety

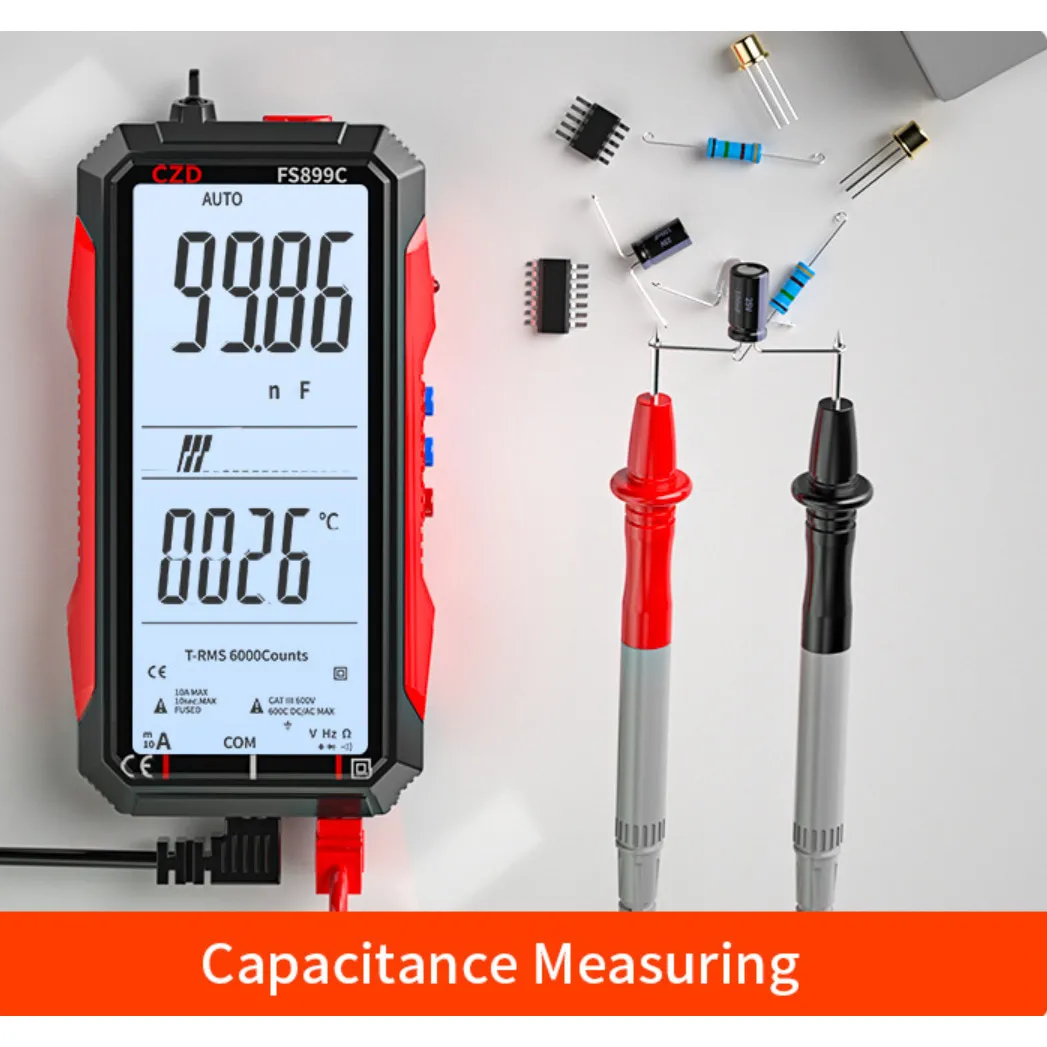

Fast Continuity Test/Capacitance Measurement

RangeAccuracyResolution
10nF±(3.5%+20)10pF
100nF±(5%+3)100pF
1uF±(3.5%+20)1nF
10uF±(3.5%+20)10nF
100uF±(5%+3)100nF
1mF±(3.5%+20)1uF
10mF±(5%+3)10uF
60mF±(5%+3)60uF



Frequency (Hz)

RangeAccuracyResolution
10-10M Hz±(2.0%+3)0.1Hz



Measurement Functions

Measurement FunctionRangeAccuracyResolution
DC/AC Current Auto Scan (DCA/ACA)



DC/AC 6A±(2%+30)0.001A

DC/AC 10A
0.01A
DC/AC Voltage Auto Scan (DCV/ACV)



DC/AC 6V
0.001V

DC/AC 60V±(0.5%+3)0.01V

DC/AC 600V
0.1V




Resistance (Ω)

RangeAccuracyResolution
600Ω±(0.8%+5)0.1Ω
60KΩ±(0.8%+3)1Ω
6KΩ±(0.8%+3)10Ω
600KΩ±(2.5%+0.3)100Ω
6MΩ±(2.5%+0.3)1KΩ



Fast Continuity Test/Capacitance Measurement Conditions

RangeDisplay ValueTest Conditions
"——"-Forward DC current approx. 1mA, open circuit voltage approx. 3V
-Buzzer sounds continuously, resistance between two points less than (50±20)ΩOpen circuit voltage approx. 0.4V, press "power" for two-range function switching



Fast Continuity Test/Capacitance Measurement

RangeAccuracyResolution
10nF±(3.5%+20)10pF
100nF±(5%+3)100pF
1uF±(3.5%+20)1nF
10uF±(3.5%+20)10nF
100uF±(5%+3)100nF
1mF±(3.5%+20)1uF
10mF±(5%+3)10uF
60mF±(5%+3)60uF



Frequency (Hz)

RangeAccuracyResolution
10-10M Hz±(2.0%+3)0.1Hz



Parameter Categories

Parameter CategorySpecification Description 1Specification Description 2Specification Description 3Specification Description 4Specification Description 5
Resistance AccuracyAll±(0.01% + 1)±(0.01% + 1)...±(0.01% + 1)...±(0.01% + 1)...
DC Current RangeAll6A/10A


Other SpecificationsAC Voltage Range: 6V/60V/600V/750VDC Voltage Range: 6V/60V/600VAC Voltage Accuracy: ±(0.5% + 2)Measurement Function: Capacitance
Max Display: 3999
AC Current Range: 6A/10A
Product Type: Digital Multimeter
