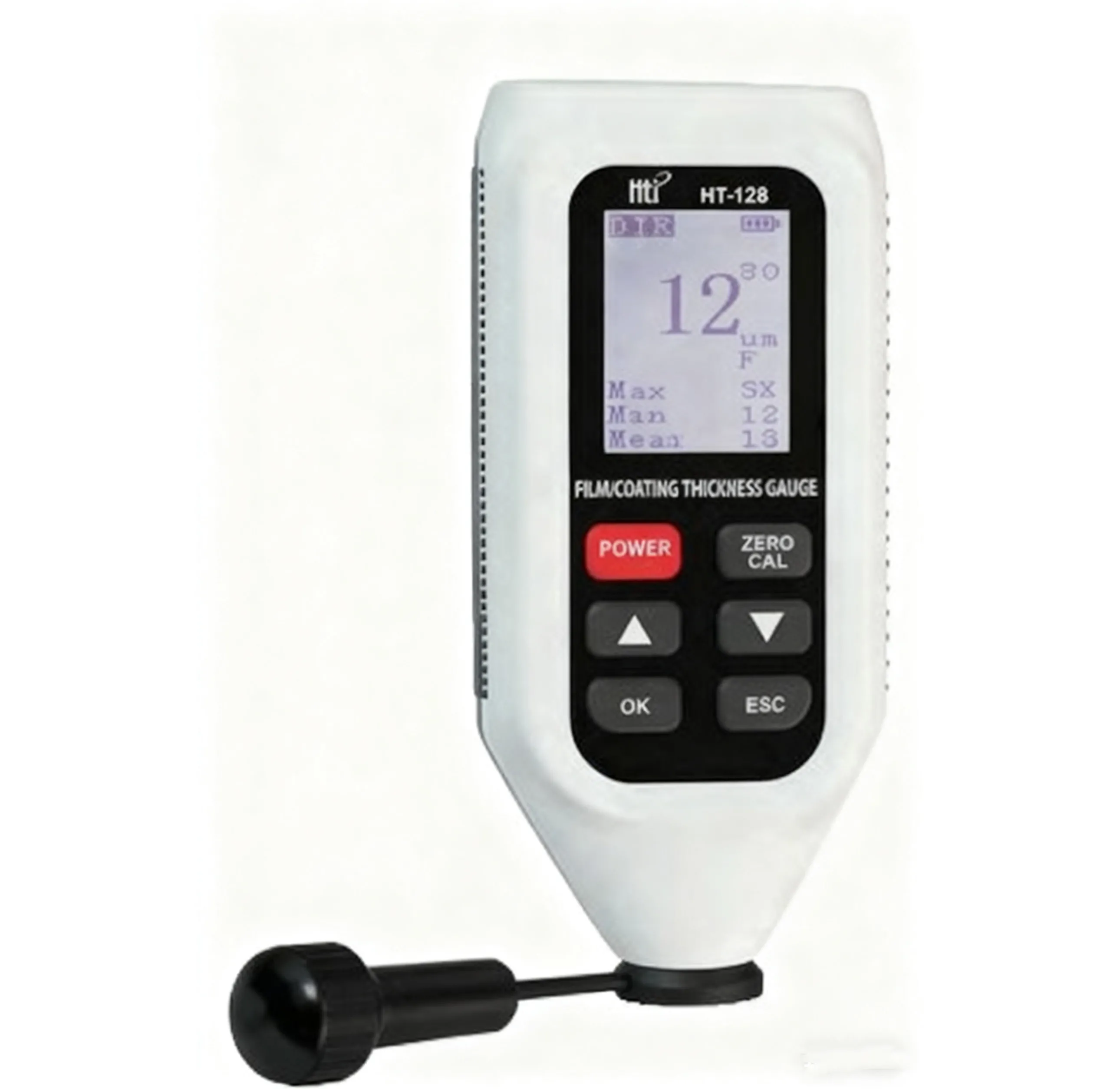

HT-128 Coating Thickness Gauge

The HT-128 Coating Thickness Gauge employs dual measurement principles of electromagnetic induction and eddy current to accurately measure the thickness of non-conductive coatings on both ferromagnetic metals (such as iron and steel) and non-ferromagnetic metals (such as aluminum and copper). Equipped with a high-precision non-destructive probe and automatic substrate identification, it enables fast and accurate on-site measurements, making it an ideal tool for industrial non-destructive testing applications.


Share:

Product Applications

Quality control in manufacturing

Metal processing and surface treatment industries

Anti-corrosion coating inspection for chemical equipment

Commodity inspection and quality assessment

Coating inspection for automotive, shipbuilding, and steel structures


Product Usage

This product is suitable for the following measurement scenarios:

Measuring non-magnetic coatings (such as paint, powder coatings) on ferrous substrates (iron, steel)

Measuring insulating coatings on non-ferrous metal substrates (aluminum, copper, stainless steel)

Conducting rapid non-destructive testing in production sites and laboratories

Measuring curved workpieces (meeting minimum curvature radius requirements)


Product Advantages

Dual-Principle Measurement with Automatic Substrate Identification

Integrates both electromagnetic induction and eddy current measurement principles

Automatically identifies ferrous/non-ferrous substrates without manual switching

Smart calibration technology ensures accurate and reliable measurement results

High-Precision Measurement with Wide Range Coverage

Measurement range: 0~1300μm, meeting most application requirements

High resolution: 1μm (0~999μm), 0.01mm (≥1000μm)

High accuracy: ±3% + 2μm (0~1300μm)

User-Friendly Design, Portable and Easy to Use

Compact and lightweight design for easy portability in field use

LCD backlit display for clear readings in various lighting conditions

Single/continuous measurement modes adapt to different inspection needs

Automatic shutdown after 3 minutes of inactivity extends battery life


Product Parameters

ParameterSpecification
ModelHT-128
Measurement ModesSingle and continuous measurement
Unitsμm, mm
Measuring Range0~1300μm
Resolution1μm (0~999μm); 0.01mm (≥1000μm)
Accuracy±3% + 2μm (0~1300μm)
Substrate Thickness>0.5mm
Convex Curvature Radius>1.5mm
Concave Curvature Radius>25mm
Measurement Area Diameter>6mm
DisplayLCD with backlight
Auto Shutdown Time3 minutes (no key operation)
Operating Temperature0~45℃ (non-condensing, no strong magnetic field)
Operating Humidity0~90%RH (non-condensing)
Storage Temperature-10~50℃ (14~122°F)
Storage Humidity0~90%RH (non-condensing)
Power Supply2×1.5V AAA batteries
Dimensions112×51×28mm
