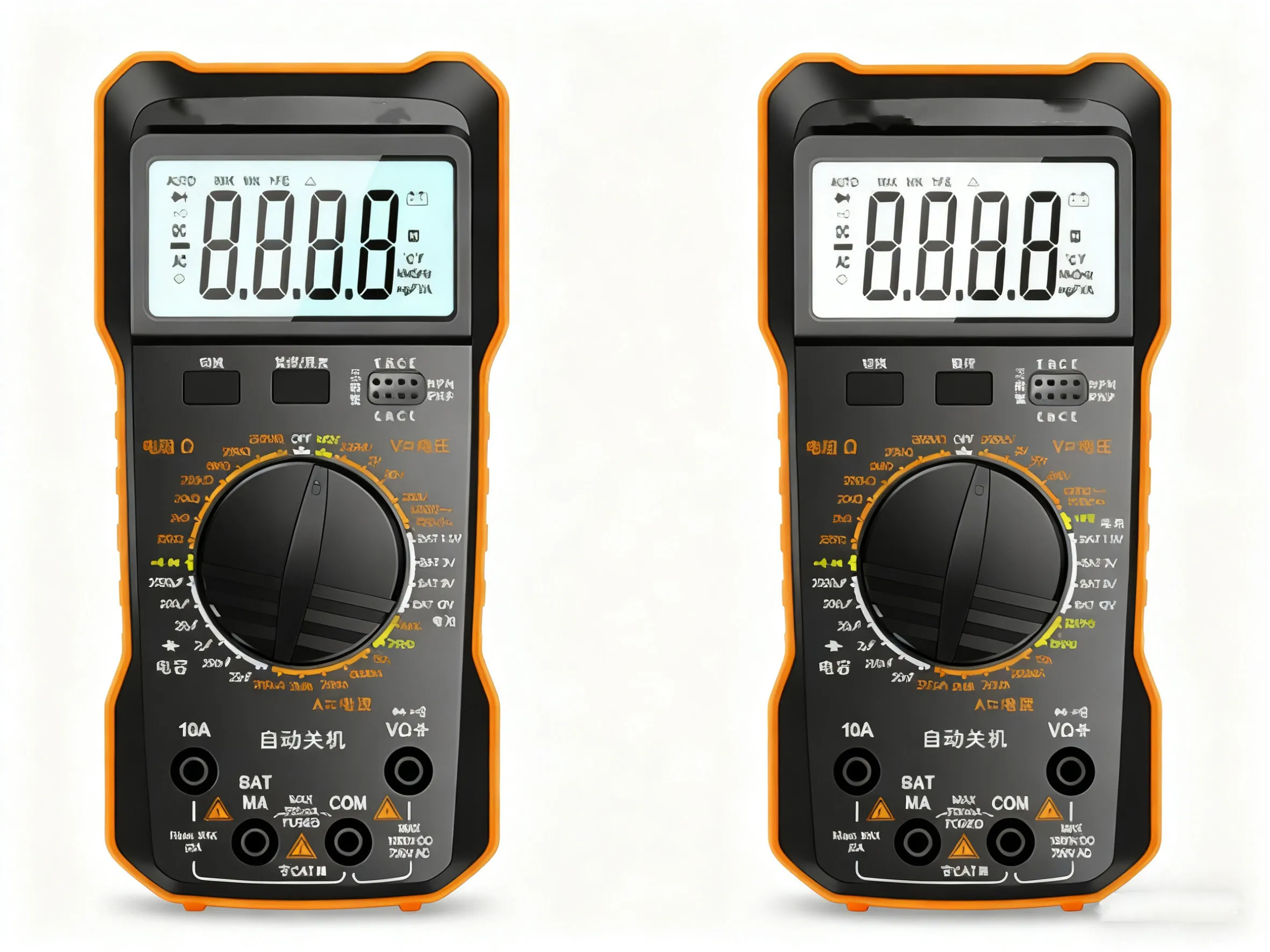

This product is a professional-grade high-precision digital multimeter, equipped with an LCD backlight display, supports non-contact voltage detection (NCV), and features an intelligent anti-burn chip with full-range overload protection. It offers a large capacitance measurement capability of 2000μF, serving as both a multimeter and a capacitance meter. It supports battery power detection (1.5V/3V/9V/12V) for quick assessment of remaining battery life. Practical functions such as data hold, auto power-off, and backlight display make it suitable for various electrical and maintenance scenarios.
Product Applications
AC/DC voltage and current measurement
Resistance, capacitance, diode, and transistor testing
Continuity buzzer test
Frequency detection
Non-contact voltage detection (NCV)

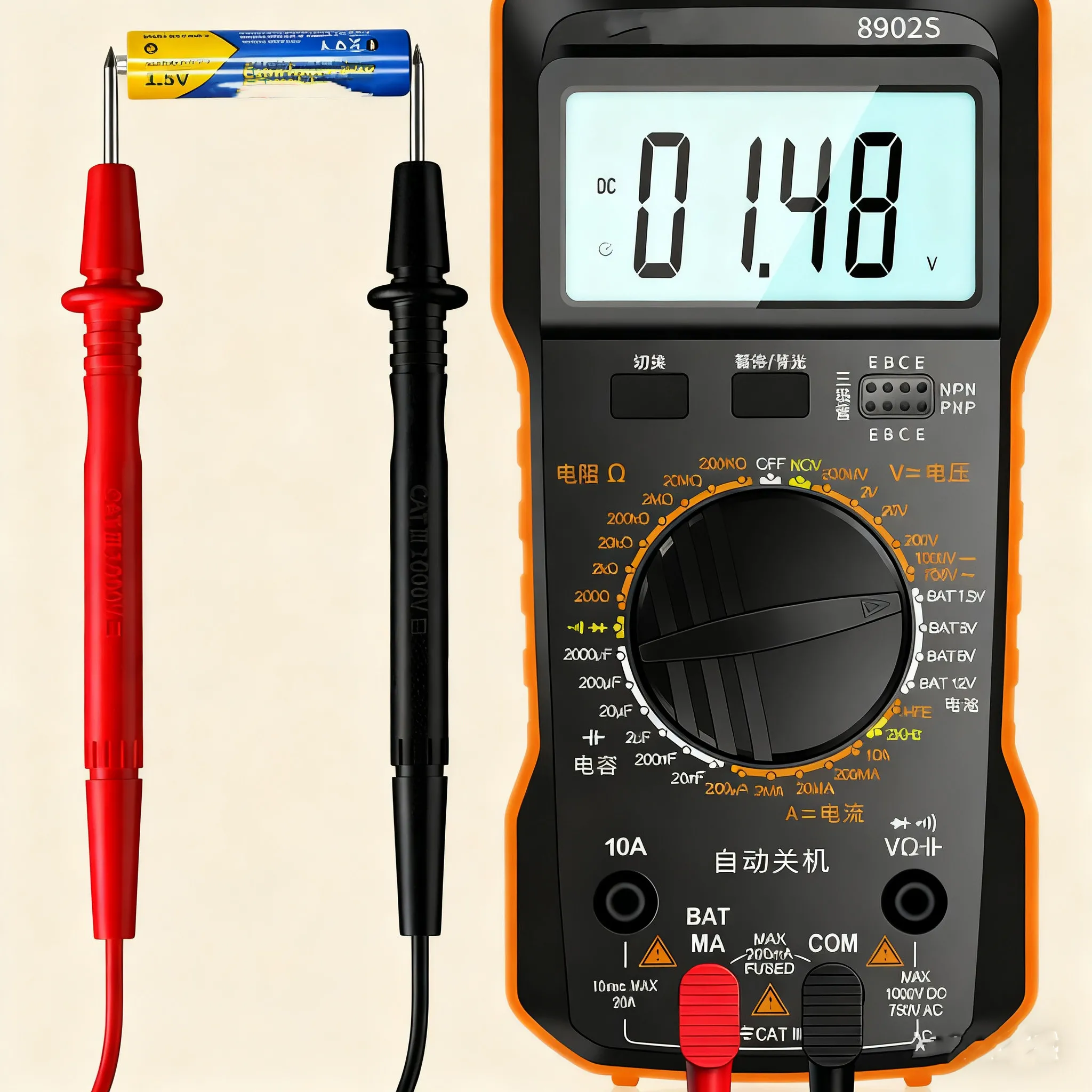

Battery power detection
Data hold and backlight display
Product Usage
Powered by 2 AAA 1.5V batteries
Auto power-off function for energy saving
Backlight design for clear reading in low-light environments
Data hold button to lock measurement results for easy recording
Replace batteries promptly when the low battery indicator appears
Product Advantages
High-Precision Measurement: Intelligent chip ensures fast, accurate, and safe measurements
Multi-Function Integration: Versatile tool for common electrical measurement needs
Safety and Reliability: Full-range intelligent anti-burn protection, suitable for beginners, electricians, and maintenance personnel
User-Friendly Design: Backlight display, data hold, and auto power-off for convenience
Enhanced Capacitance Measurement: Supports up to 2000μF capacitance detection, expanding application range
| Category | Function Items |
| Product Features | High Performance |
| Core Function Highlights | |
| All-in-One Design, Multiple Uses | |
| Measurement Functions | AC/DC Voltage |
| AC/DC Current | |
| Capacitance Measurement | |
| Resistance Measurement | |
| Transistor Measurement | |
| Diode Measurement | |
| Continuity Test | |
| Frequency Measurement | |
| Battery Voltage Test (1.5V/3V/9V/12V) | |
| NCV Non-Contact Detection | |
| Auto Power Off |
| Function Item | Backlight Model 8902S | Anti-burn Model 8902B |
| AC Voltage | ✓ | ✓ |
| DC Voltage | ✓ | ✓ |
| AC Current | ✓ | ✓ |
| DC Current | ✓ | ✓ |
| Resistance Measurement | ✓ | ✓ |
| Capacitance Measurement | ✓ | ✓ |
| Diode Measurement | ✓ | ✓ |
| Transistor Measurement | ✓ | ✓ |
| Continuity Buzzer | ✓ | ✓ |
| Frequency Detection | ✓ | ✓ |
| Battery Level Detection | ✓ | ✓ |
| Data Hold | ✓ | ✓ |
| Backlight | ✓ | |
| Auto Power Off | ✓ | ✓ |
| NCV Non-contact Measurement | ✓ | ✓ |
| Function/Parameter | Backlight Model 8902S | Anti-burn Model 8902B |
| DC Voltage | 200mV-1000V | 200mV-1000V |
| DC Current | 200μA-20A | 200μA-20A |
| AC Voltage | 200mV-750V | 200mV-750V |
| AC Current | 2mA-20A | 2mA-20A |
| Resistance | 200Ω-200MΩ | 200Ω-200MΩ |
| Capacitance | 20nF-2mF | 20nF-2mF |
| Diode | ✔ | ✔ |
| Transistor | ✔ | ✔ |
| NCV | ✔ | ✔ |
| Frequency | 2kHz | 200Hz-2kHz |
| Battery Level Detection | 1.5/3/9/12V | 1.5/3/9/12V |
| Continuity Buzzer | ✔ | ✔ |
| Backlight | ✔ | ✔ |
| Data Hold | ✔ | ✔ |
| Auto Power Off | ✔ | ✔ |
| Maximum Display Value | 1999 | 1999 |
| Over-range Indication | ✔ | ✔ |
| Low Battery Warning | ✔ | ✔ |
| Power Supply | 2×1.5V AAA Batteries | 2×1.5V AAA Batteries |
| Dimensions | 186×90×26mm | 186×90×26mm |
| Attribute | Value |
| Type | Digital Multimeter |
| Style | Desktop Multimeter |
| Application | Professional Use |
| Safety Level | 1 |
| Measurement Functions | Capacitance, Battery, Resistance, DC Current, AC Current, AC Voltage, DC Voltage |
| Auto Range | No |
| Continuity Buzzer Test | Yes |
| Diode Test | Yes |
| Data Hold | Yes |
| Auto Power Off | Yes |
| DC Voltage Range | 200mV-1000V |
| AC Voltage Range | 200mV-1000V |
| ATTRIBUTE | VALUE |
| DC Current Range | 200μA-20A |
| AC Current Range | 2mA-20A |
| Capacitance Range | 20nF-2mF |
| Maximum Display | 1999 |
| Standard Accessories | Multimeter + Battery + Test Leads + User Manual |
| Dimensions | 186×90×26mm |
| Battery Type | 2×1.5V AAA Batteries |
| Net Weight | 280g |
